Why Process-First Engineering reduces risks in PLC programming

When the starting decision defines success or risk

The starting point of an automation project may appear at first to be a purely technical decision. In reality, however, it lays the foundation for how machine behavior is defined, validated, and controlled across the entire lifecycle of a system.

In modern industrial automation, machine control systems are typically based on PLC systems, sensors, and actuators.  However, long-term stability is not determined by PLC programming alone, but by the underlying automation architecture.

In practice,  many projects initiate straight with programming, HMI design, or hardware selection. This results in machines that appear to function at first glance, but their actual behavior often only becomes visible during integration, changes, or commissioning.

This is exactly where it is decided whether a system is truly controllable, or whether risks only become visible once they already incur costs. If machine behavior only emerges during implementation, it often leads to complex systems with logic that is difficult to trace and carries increased risk, especially during commissioning.

This raises a central question for projects and organizations: how can machine behavior be structurally defined from the outset?

This article explores:

• Which entry points exist in automation projects
• Why Code-First development creates structural risks
• How Process-First Engineering works

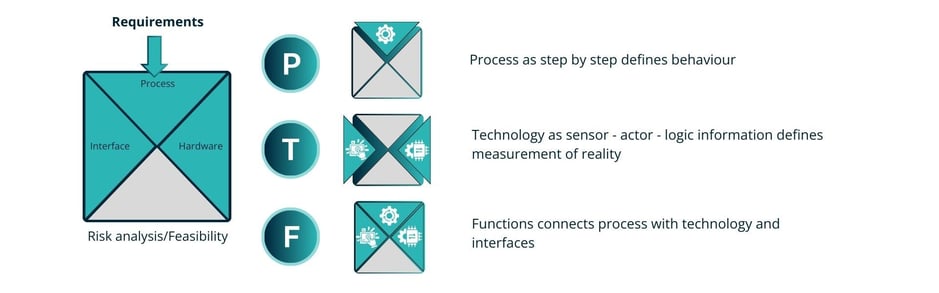

• How the PTF methodology structures automation architecture
• How model-based approaches and digital twins can be applied

Selmo Method Brochure

What advantages arise when machine behavior is not created in code, but clearly defined from the outset?

Our brochure shows how behavior can be structurally defined and made controllable before programming begins. With WhiteBox Engineering, Process-First automation, and model-based control architecture.

Download the Selmo Method Brochure

The four entry points in automation projects

Every automation project begins with a fundamental decision: the entry point. This entry point largely determines how machine behavior emerges, how it is validated, and how it can later be controlled during operation.

Typically, four entry points can be distinguished:

• Code
• Interface (HMI)
• Hardware
• Process

What appears technical at first glance is, in reality, a strategic decision. It has long-term implications for risk, maintainability, and the investment security of a system.

Process-First Engineering: The strategic entry point

The safest and most long-term efficient entry point is the process.

In Process-First Engineering, machine behavior is first defined as a structured model before implementation begins.

This means:

• States are explicitly defined
• Transitions are formally described
• Expected reactions are modeled
• Behavior is validated before implementation

Technology, control logic, and software then follow this structured behavioral definition.

This approach significantly reduces risk because:

• Errors become visible earlier
• Commissioning becomes more predictable
• Changes can be structurally verified
•  Knowledge is independent of specific individuals

Organizations that apply Process-First Engineering often achieve:

• Shorter commissioning times
• More stable production systems
• Lower maintenance costs
• Better scalability of their automation architecture
• Fewer and shorter downtimes

At Selmo, this approach is implemented through Sequence Logic Modeling and the PTF methodology. Machine behavior is thus deterministically described and explicitly defined before implementation.

Other entry points in development and their structural risks

In practice, many automation projects do not begin with an explicit definition of machine behavior, but directly with technical decisions.

These approaches may work in the short term. In the long term, however, they often lead to implicit machine behavior, increased complexity, and higher operational risk.

The difference between these approaches becomes particularly clear when examining when and how machine behavior is actually defined.

Process-First Engineering differs fundamentally from the other approaches.

While code-, interface-, or hardware-driven projects allow behavior to emerge implicitly, Process-First Engineering defines machine behavior explicitly before implementation.

This creates a clear separation between:

•  Behavior definition
•  Technical implementation


This separation significantly reduces structural risks. As a result, machine behavior becomes:

•  Traceable
•  Verifiable
•  Stable over the long term

This principle forms the foundation of Selmo’s WhiteBox Engineering approach, where machine behavior is formally defined before implementation and remains controlled and traceable throughout the entire lifecycle.
